Direct Answer: Mend My iPhone repaired a water damaged Amazon Fire tablet by tracing the fault to two tiny shorted components on the board, removing them to find corroded pads underneath, and replacing the parts from a donor board with a bridged ground connection. The tablet powered up and is back in service.
Key Takeaways
- Water damage rarely kills a board outright — it usually shorts out one or two small components first
- The real damage is often hiding under the component, on the pads, not in the part itself
- A donor board and a steady hand can save a tablet that looks like a write-off
Had one of these in this week — a Fire tablet that had been on the wrong end of some water, by the looks of the corrosion. Customer assumed it was dead. It wasn’t, quite. Just very confused.
Thought I’d write this one up properly rather than just leaving it as a Facebook post, because it’s a decent example of what “board-level repair” actually looks like day to day. No drama, no miracle cure, just methodically chasing a short until it gives up its secret.
The Symptom: Won’t Power On Properly
Water damaged devices rarely arrive with a single, clean fault. What you usually get is a vague, unhelpful symptom — won’t charge, won’t boot, boots and immediately shuts down — and the actual cause buried somewhere on the board. This one was no different. Visual inspection showed the tell-tale white-ish corrosion bloom around one section of the board near the charging circuitry, which is always where I start looking first on a tablet that’s had liquid ingress.

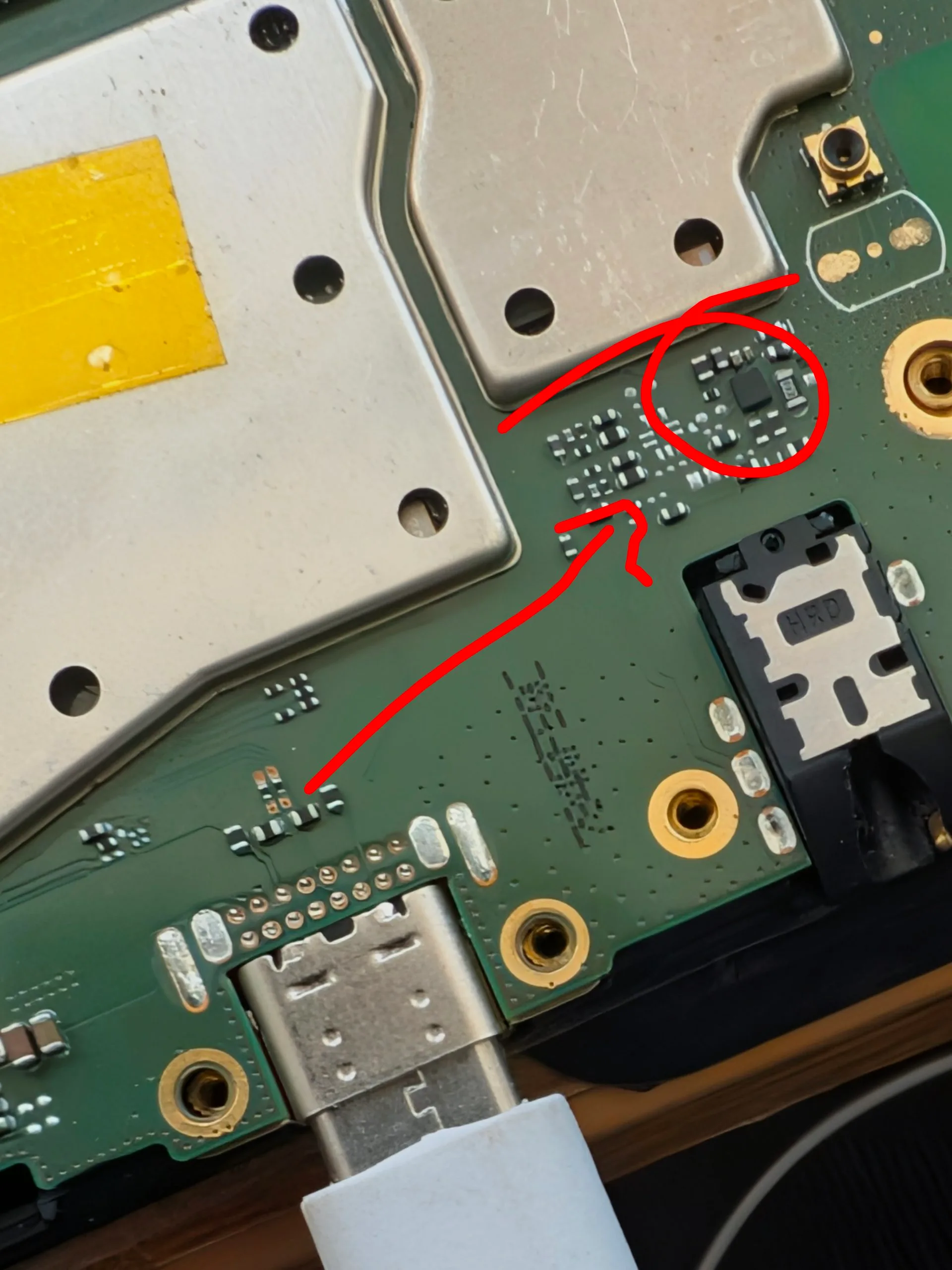

The area in question sits just off the USB-C port and the SIM/card tray housing — exactly where you’d expect moisture to track in and pool, given the seams and connectors nearby.
Finding the Short

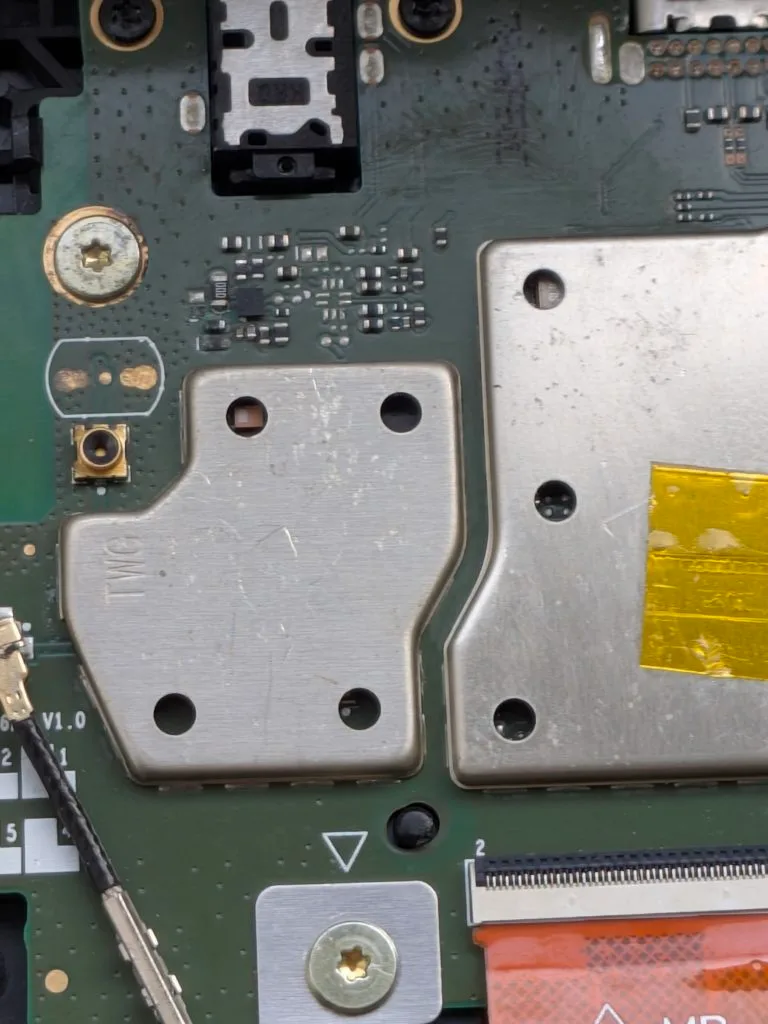

With a multimeter and a bit of patience, I isolated the fault to two very small surface-mount components sat close together in that corroded zone. Tiny things — the kind you need decent magnification and a steady hand for, not the kind you want to be doing after three coffees. Both were shorted dead, which was pulling the rail down and stopping the board from powering up cleanly.
Removed both components for a closer look, and that’s when the real story showed up. It wasn’t just the components that had given up — the pads underneath them had corroded too. Water plus exposed copper plus time equals exactly this: the kind of fine, creeping corrosion that eats the connection from the inside out, even when the component on top still looks fine to the naked eye.
The Fix: Donor Parts and a Bridged Ground
This is where having a stack of donor boards earns its keep. Pulled matching components off a board with the same chipset, cleaned the corroded pads back to clean copper, and got the new parts seated. One of the ground connections on the original pad had corroded away to nothing, so I bridged that solder joint straight through to ground elsewhere on the board rather than fighting a pad that wasn’t coming back.

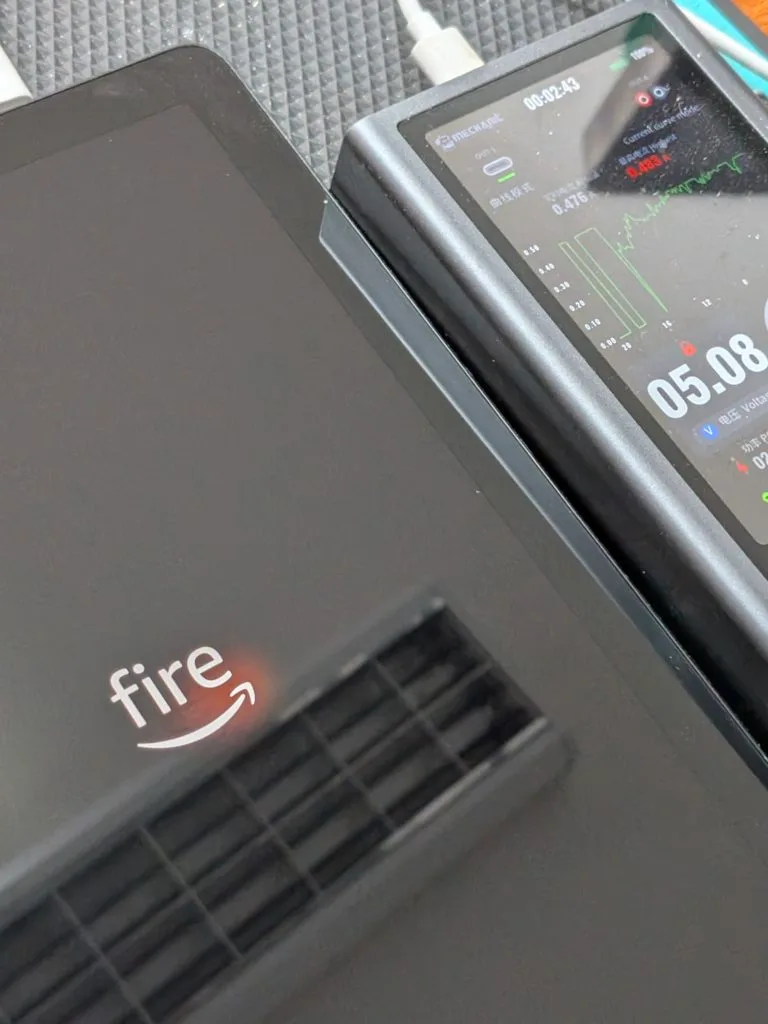

Powered it up on the bench with it hooked up to a USB power meter to keep an eye on current draw while it booted — no shorts, no runaway current, clean boot. Fire logo came up exactly as it should.
Why this matters: A lot of water damaged devices get written off because the symptom looks terminal. In reality, liquid damage is often very localised — a couple of components and some corroded pads, not a dead board. The skill is in finding which two components out of a few hundred actually failed.
Another Tablet Back in Circulation
Customer gets their tablet back, working, instead of buying a new one. No landfill, no unnecessary spend, and a problem that looked like a write-off turned into an afternoon’s careful work at the bench.
This is the kind of repair that doesn’t fit neatly into a price list, because every water damaged board is its own little investigation. If you’ve got a tablet, phone, laptop, or anything else that’s had a contact with water and is now doing something odd — or nothing at all — get in touch and I’ll take a look at it properly rather than just guessing.
Frequently Asked Questions
Can a water damaged Kindle Fire be repaired?
Yes, in many cases. Water damage often shorts out small components on the circuit board rather than destroying it outright. If the corrosion is caught and cleaned up, and the failed parts are identified and replaced, the tablet can be brought back to full working order.
What actually fails on a tablet after water damage?
Tiny surface-mount components such as capacitors and small ICs are usually the first casualties. Water causes electrolytic corrosion on the solder pads underneath them, which can short the component or eat away the pad connection entirely.
Is it worth repairing a budget tablet like an Amazon Fire?
Often yes, especially when the fault is component-level rather than a cracked screen or destroyed motherboard. A diagnostic and board-level repair can cost a fraction of a replacement, and keeps a perfectly good tablet out of landfill.
Does Mend My iPhone repair tablets other than iPhones?
Yes. Despite the name, Mend My iPhone in Market Weighton repairs phones, tablets, laptops, and games consoles, including board-level component repairs on devices like the Amazon Fire.
Got a Water Damaged Device?
Drop me a message at info@mendmyiphone.co.uk or call/WhatsApp 07934 062949. Based at 9 Southgate, Market Weighton — walk-ins welcome, or send it in if you’re further afield.
